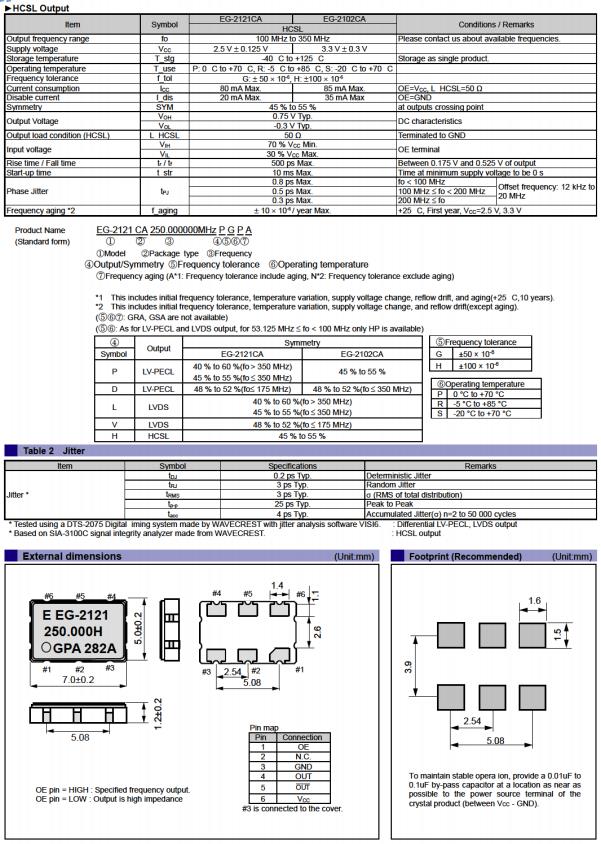

EPSON醫療設備應用OSC有源晶振Q3805CA10009600，愛普生公司作為日系品牌最為優秀的制造商，憑著自身的信念，成為一家實力派制造商，擁有先進的生產技術和高端的生產設備，向市場提供優質的晶振產品,主要生產有源晶振，石英晶體，石英晶體振蕩器等元器件，愛普生晶振公司所生產的產品經過嚴格的生產體系制作而成，當市場開始主流醫療晶振，通過自身的研究開發了EG-2121CA晶振，OSC晶振，有源貼片晶振編碼Q3805CA10009600，頻率54.000000兆赫，輸出WaveLVDS，電源電壓2.38 ~ 2.62 V，尺寸(LxWxH)7.00 x 5.00 x 1.20 mm，工作溫度0至+70°C，頻率公差±100ppm，這是一款具備優越性能,低損耗,低抖動的有源晶振，應用領域廣泛，其中包含用于醫療設備，可視智能家居，藍牙模塊等。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
Q3805CA10009000	EG-2121CA	160.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009100	EG-2121CA	644.531300 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009200	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10009300	EG-2121CA	175.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10009400	EG-2121CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009500	EG-2121CA	75.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009600	EG-2121CA	54.000000 MHz	7.00 x 5.00 x 1.20 mm	差分晶振	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009700	EG-2121CA	350.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009800	EG-2121CA	700.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10009900	EG-2121CA	300.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010000	EG-2121CA	328.710900 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010100	EG-2121CA	140.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10010200	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010300	EG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010400	EG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010500	EG-2121CA	148.351600 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10010600	EG-2121CA	266.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10010700	EG-2121CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10010800	EG-2121CA	644.531250 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
Q3805CA10010900	EG-2121CA	350.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10011000	EG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C

相比之下，有源晶振模塊一般需要電源電流為10mA ~60mA。硅振蕩器的電源電流取決于其類型與功能，范圍可以從低頻(固定)器件的幾個微安到可編程器件的幾個毫安。一種低功率的硅振蕩器，如MAX7375，工作在4MHz時只需不到2mA的電流。在特定的應用場合優化時鐘源需要綜合考慮以下一些因素：精度、成本、功耗以及環境需求。
